| PRODUCTS |
|
| Description |
IMAGE |

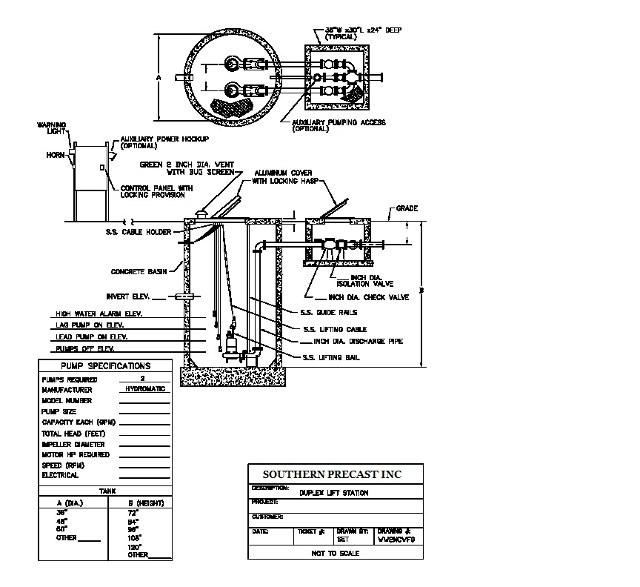

| Duplex, front load rail system with valve box in concrete |
IMAGE |

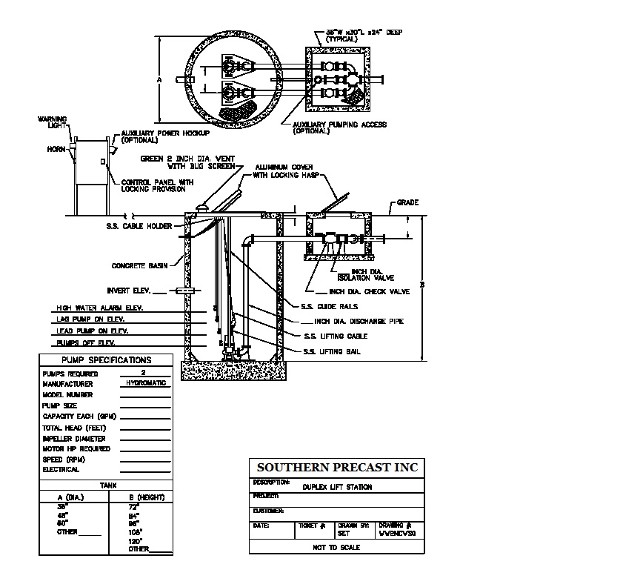

| Duplex, front load rail system with valve box in concrete |
IMAGE |
| Duplex, side load rail system with valve box in concrete |
IMAGE |
| Duplex, front load rail system with valve box in concrete |

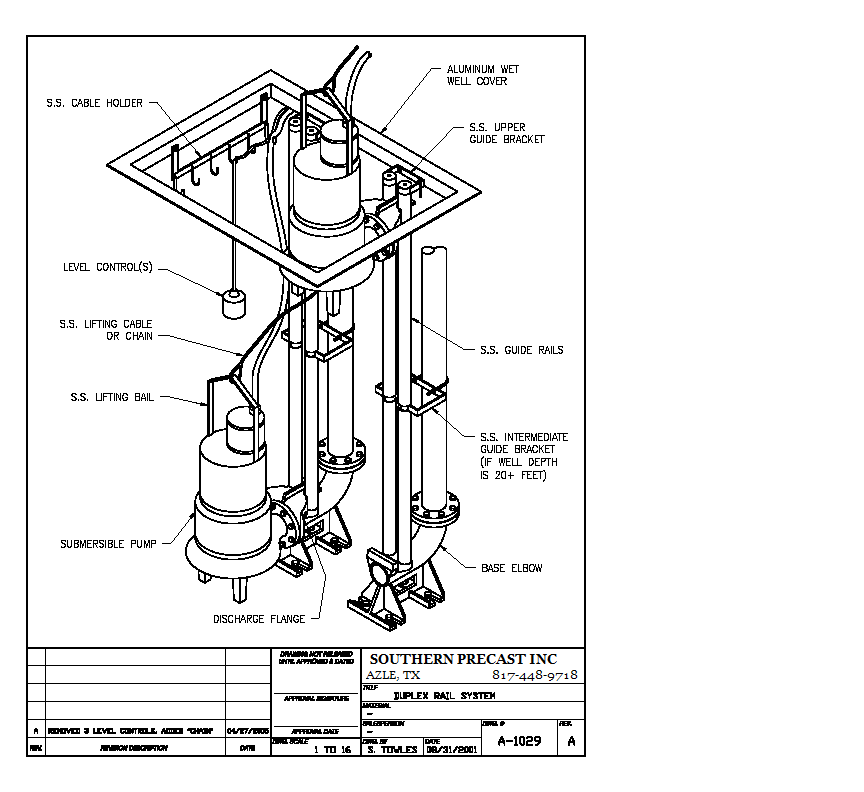

IMAGE |
| Duplex, rail system {isometric view} |
IMAGE |

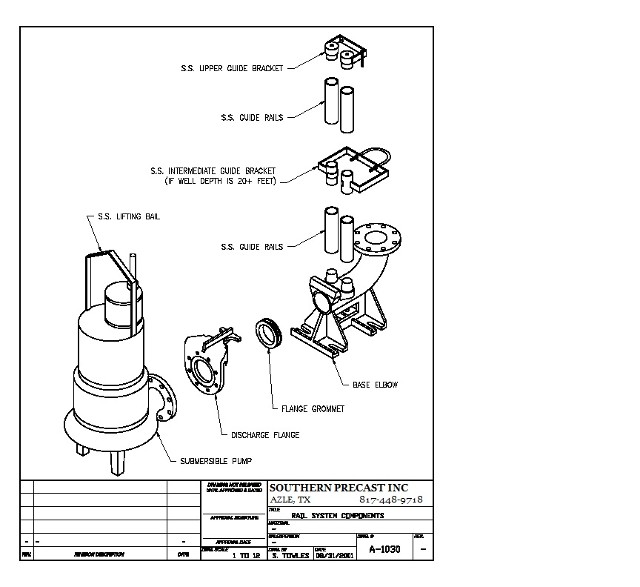

| Rail system components {isometric view} |

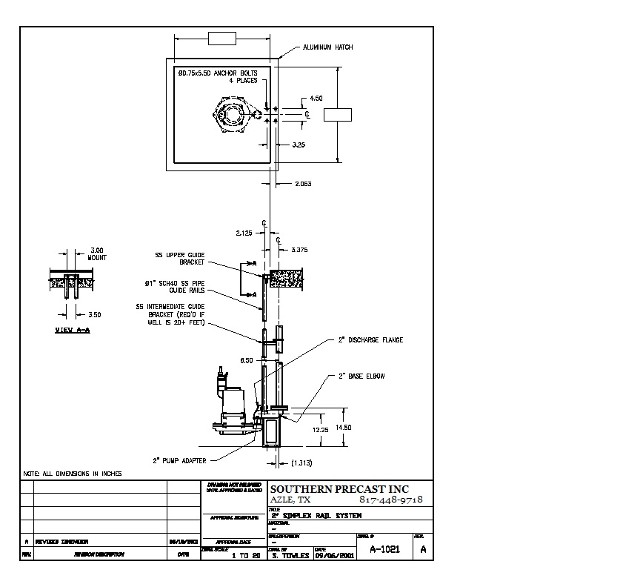

IMAGE |
| 2" simplex rail system |
IMAGE |
| 2" duplex rail system |

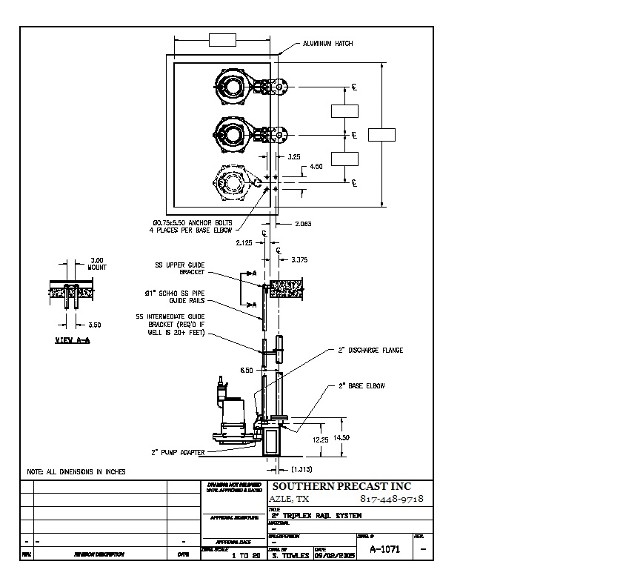

IMAGE |
| 2" triplex rail system |

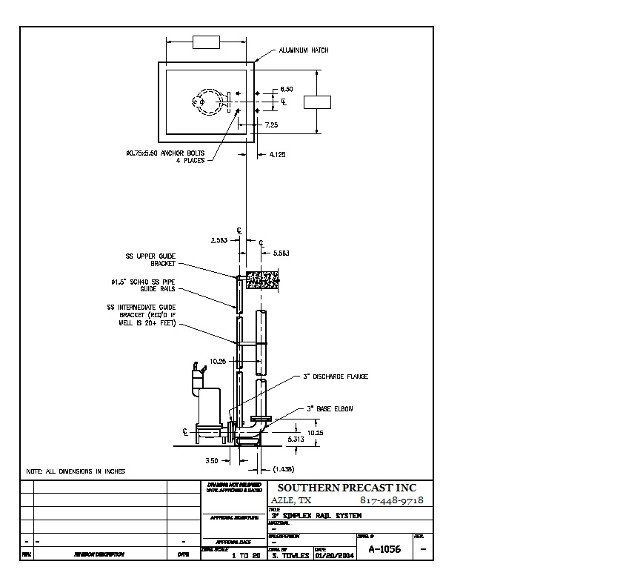

IMAGE |
| 3" simplex rail system |
IMAGE |

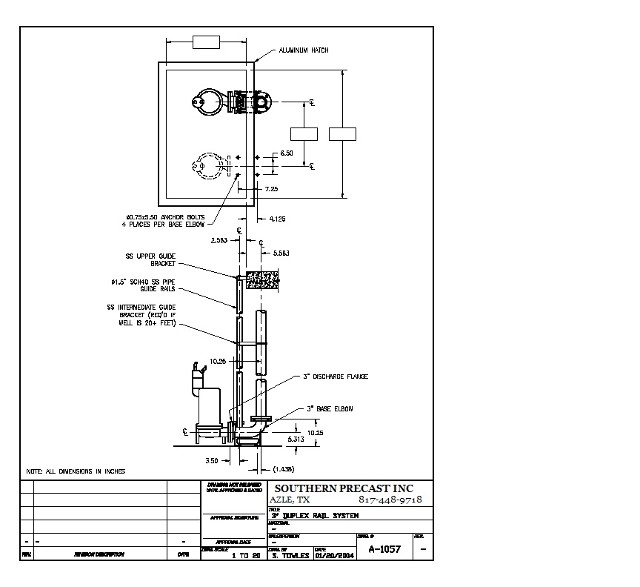

| 3" duplex rail system |
IMAGE |

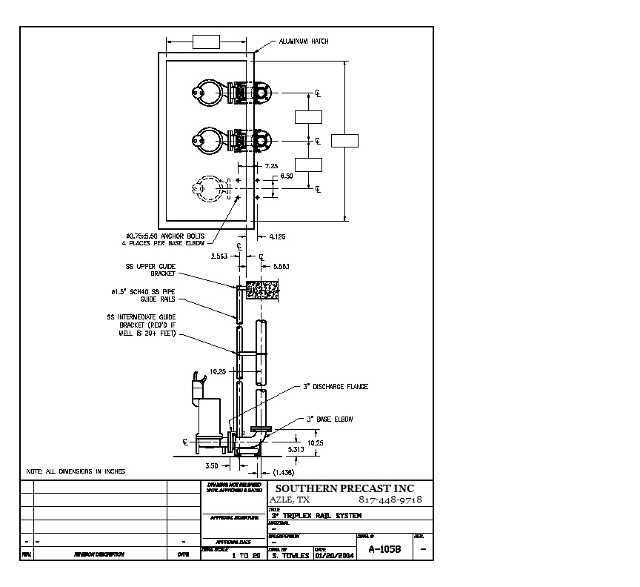

| 3" triplex rail system |
IMAGE |

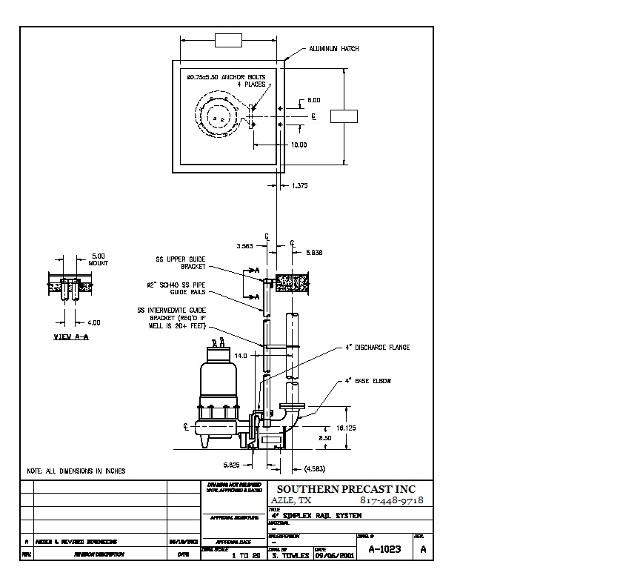

| 4" simplex rail system |
IMAGE |

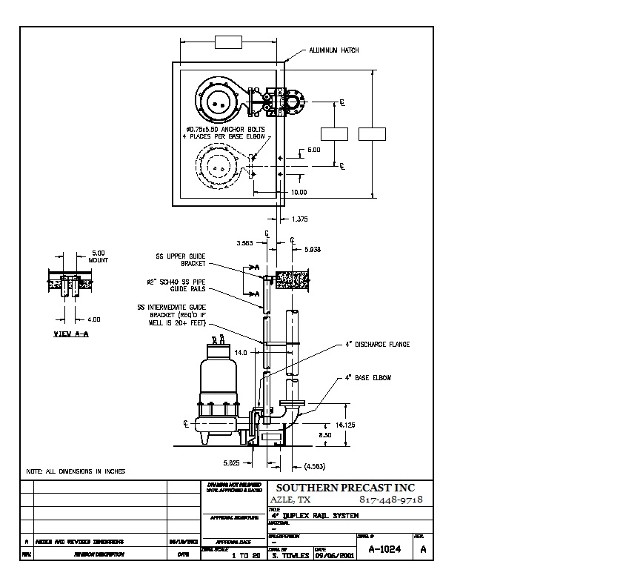

| 4" duplex rail system |
IMAGE |
| 4" triplex rail system |
IMAGE |

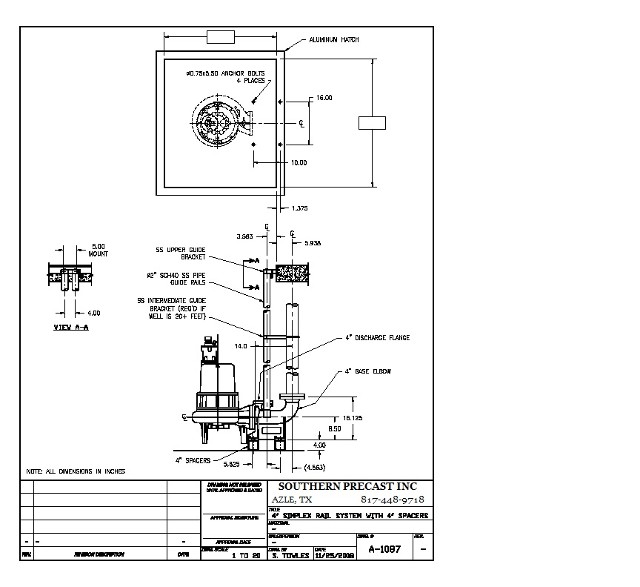

| 4" simplex rail system with 4" spacers |
IMAGE |

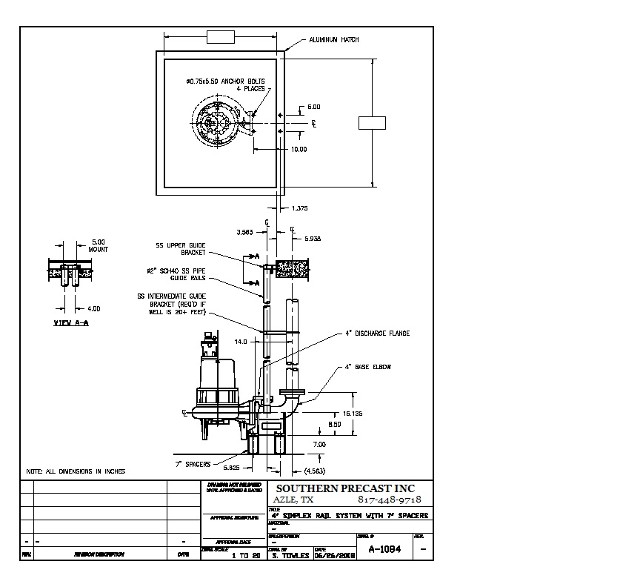

| 4" simplex rail system with 7" spacers |
IMAGE |

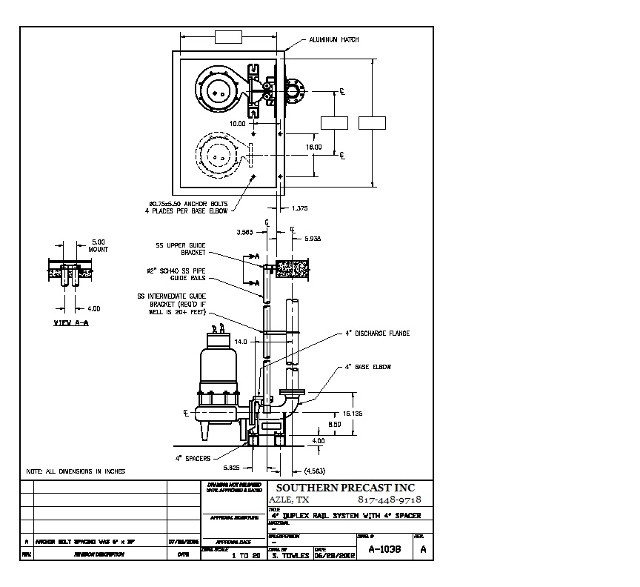

| 4" duplex rail system with 4" spacers |
IMAGE |

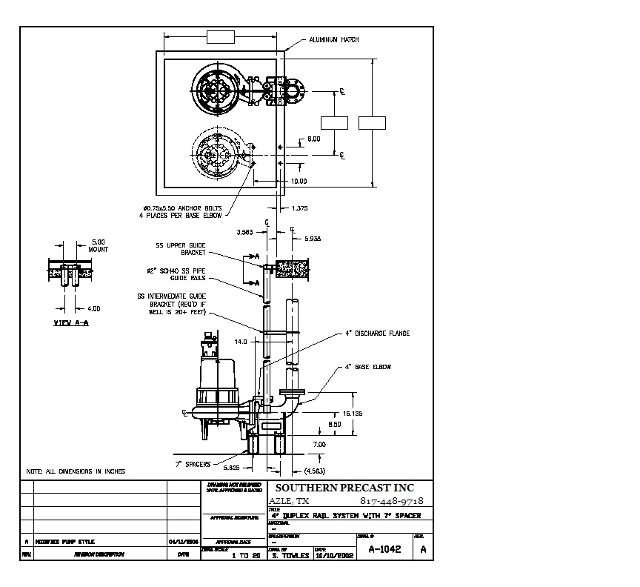

| 4" duplex rail system with 7" spacers |
IMAGE |

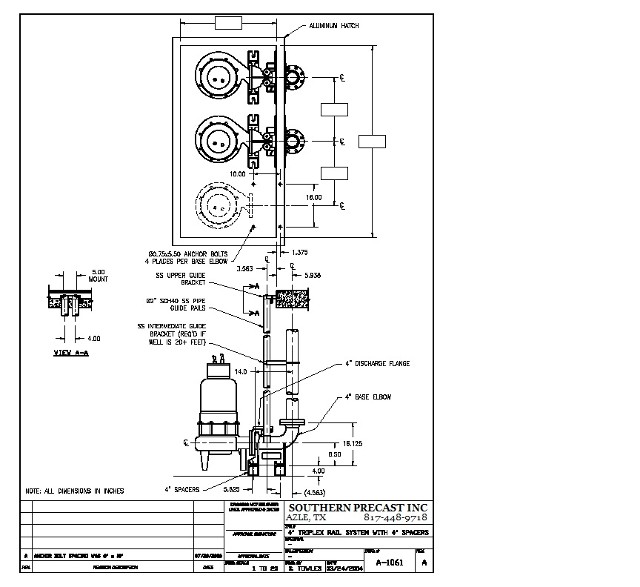

| 4" triplex rail system with 4" spacers |
IMAGE |

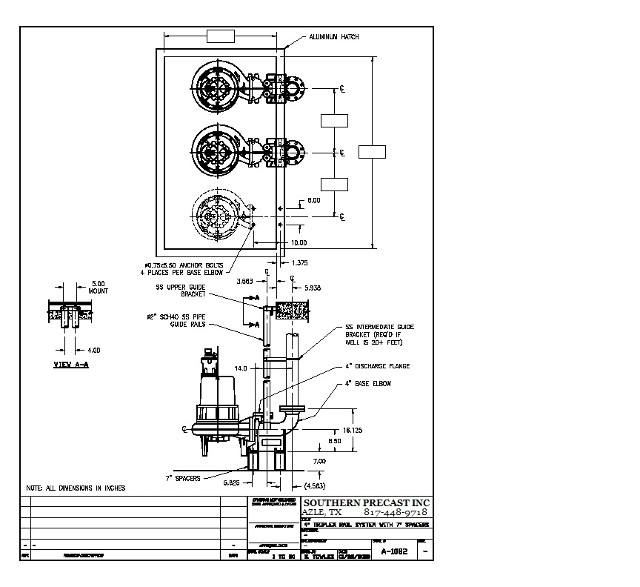

| 4" triplex rail system with 7" spacers |
IMAGE |

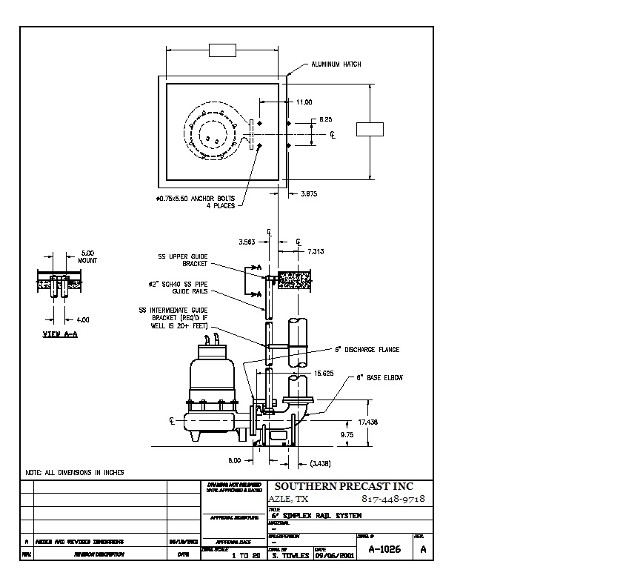

| 6" simplex rail system |
IMAGE |

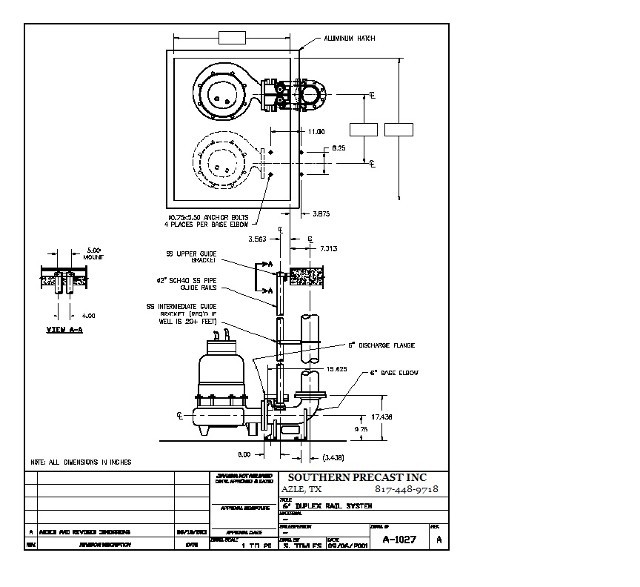

| 6" duplex rail system |
IMAGE |

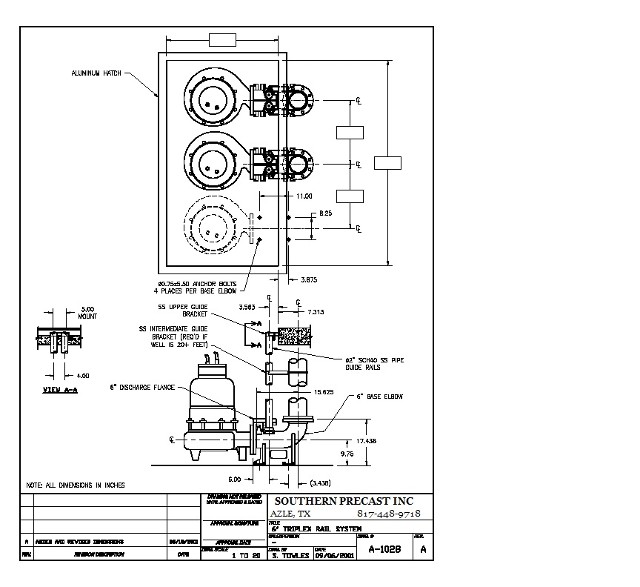

| 6" triplex rail system |

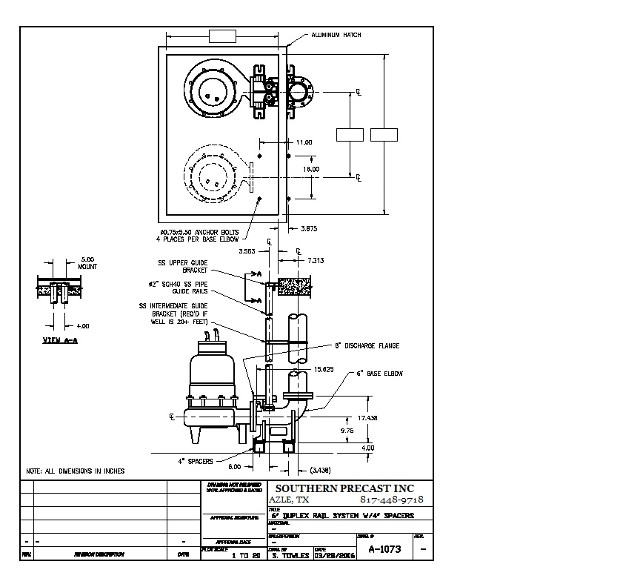

IMAGE |
| 6" duplex rail system with 4" spacers |

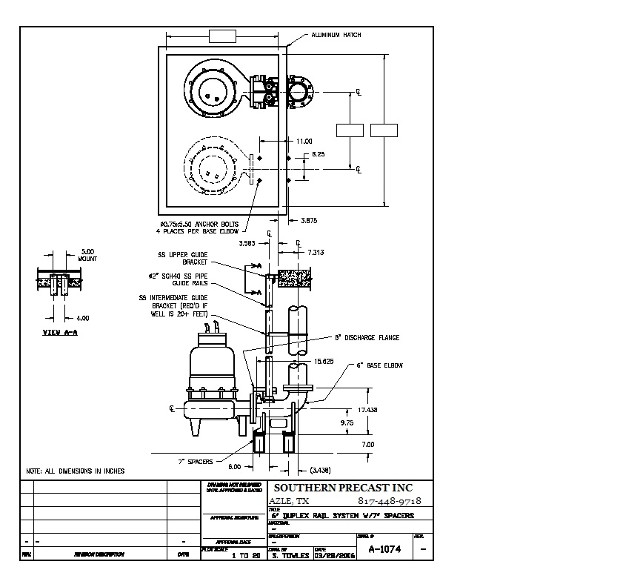

IMAGE |
| 6" duplex rail system with 7" spacers |

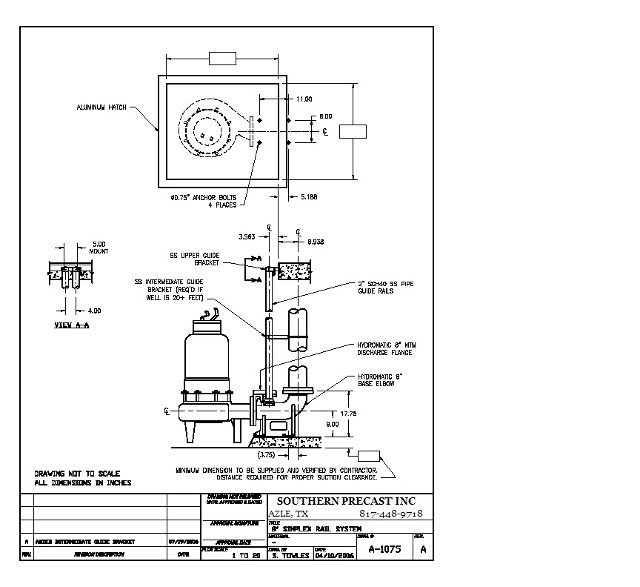

IMAGE |
| 8" simplex rail system |
IMAGE |
| 8" duplex rail system |
IMAGE |
| 8" triplex rail system |
IMAGE |
| 8" duplex rail system with 4" spacers |
IMAGE |
| 8" duplex rail system with 10" x 8" reducer |
IMAGE |
| Control Panel Drawings |
|
| 230 V/10 control panel with BOM and layout |
IMAGE |
| 230 V/30 control panel with BOM and layout |
IMAGE |
|
|
